Paragon Kiln- Pearl 18

(No reviews yet) Write a Review
MSRP: $5,000.00
$4,500.00
(You save $500.00 )
SKU:
Paragon-Pearl-18
Availability:
Built To Order - 3-5 Weeks
Weight:
253.00 LBS
Shipping:
Calculated at Checkout

Product Overview

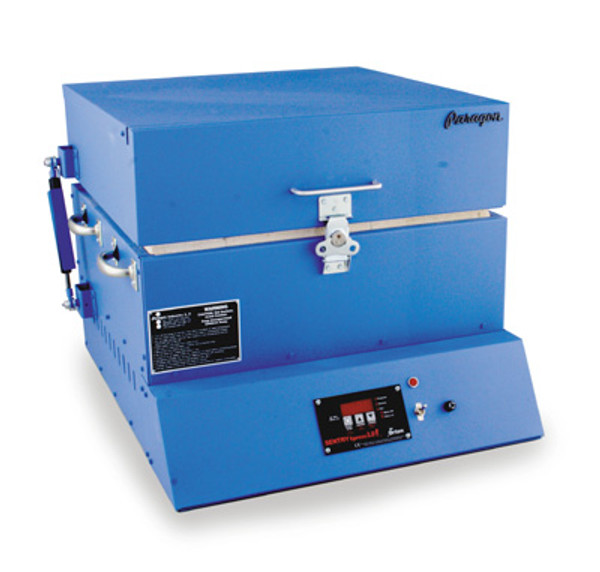

Paragon Pearl 18 Kiln

The Pearl18 is packed with exciting features. The top lifts away to give access to the shelf area from three sides. Air pistons assist in lifting the top. Even though we sell optional stands, you can place the Pearl on a table without an extra stand.

You can compose directly on the kiln shelf, then close the kiln top. There is no need to balance and carry a heavy kiln shelf from your work table over to your kiln, trying to load the shelf in the kiln while not disturbing the glass pieces in your design.

Heating elements in the top of the kiln are mounted in pinless grooves. Since the groove opening is narrower than the element coil, the elements stay in place without pins.

Key Features
  • ¼" heavy duty sheathed Type-K thermocouple
  • Sentry Xpress digital controller
  • Safety switch and pilot light
  • Air pistons assist lifting the lid.
  • Louvered switch box, heavy duty wiring
  • Includes a built-in stand.

Electrical components are mounted inside the base of the kilns. The Pearl-18 uses the digital 3-key Sentry Xpress controller.

Designed for production

Paragon’s warranty is not affected by frequency of use. Fire your new kiln every day if you want, even in commercial settings. That will have no effect on the warranty period.

Max. Temperature

1700F
926C

Amps

17

Phase

1

Watts

4000

Nema

6-20R

Breaker Size

20

Circuit Copper Wire Size

12 gauge

TUV tested to CSA and UL Standard 499

Y

CE

Y

IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.

Control Type


Sentry Xpress 4.0 Digital 3-Key

Voltage

240

Hertz

60

Nema Details

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.

The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Kiln Type

Top Loading Square

Sides

4

Understanding Chamber Measurements

Chamber Volume

1.59 CU.FT.
45.02 litres

Chamber Length

18.00 IN
457 mm

Chamber Width

18.00 IN
457 mm

Chamber Depth

8.50 IN
216 mm


The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size

27.00W x 34.00D x 21.00H Inches
686W x 864D x 533H mm

Ship Size

36.00W x 40.00D x 29.00H Inches
914W x 1016D x 737H mm

Ship Weight

253.00 Lbs.
114.76 Kg.

Ship Method & Notations

Important Shipping Information

This Kiln Ships Via Truck









Part Number

76611J3DPB   * Base Model

Recommended furniture kit for the Paragon Pearl-18 and equivalent sized kilns.

Included:

1 - C-19 Shelf (17” square x 5/8”)

4 – 1/2” long, 1” wide Square Posts

1 lb. Bag Glass Separator

Product Specifications

Warranty Information

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
