Paragon Pearl 4426

(No reviews yet) Write a Review
$13,250.16
SKU:
Paragon-Pearl-4426-Sentry
Availability:
Built To Order - 3-5 Weeks
Weight:
1,063.00 LBS
Shipping:
Calculated at Checkout

Product Overview

Max. Temperature

1700F
926C

Amps

48

Phase

1

Watts

11500

Nema

6-50R

Breaker Size

50

Circuit Copper Wire Size

6 gauge

TUV tested to CSA and UL Standard 499

N

CE

N

IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.

Control Type


Sentry Digital 12-key Non-Ceramic

Voltage

240

Hertz

60

Nema Details


Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.

The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Kiln Type

Top Loading Square

Sides

4

Understanding Chamber Measurements

Chamber Volume

8.60 CU.FT.
243.52 litres

Chamber Length

44.00 IN
1118 mm

Chamber Width

26.00 IN
660 mm

Chamber Depth

13.00 IN
330 mm


The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size

65.00W x 38.00D x 46.00H Inches
1651W x 965D x 1168H mm

Ship Size

55.00W x 62.00D x 52.00H Inches
1397W x 1575D x 1321H mm

Ship Weight

1063.00 Lbs.
482.18 Kg.

Doorway Clearance Needed

38.00 Inches
965.20 mm

Ship Method & Notations

Important Shipping Information

This Kiln Ships Via Truck









Part Number

S1524-1   * Base Model

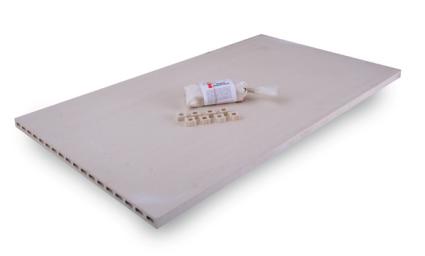

Recommended single-shelf CoreLite furniture kit for the Paragon Pearl-4426.

Included:

1 - CL42x24x1 CoreLite Shelf (42” x 24” x 1”)

8 – 1/2” long, 1” wide Square Posts

1 lb. Bag Glass Separator

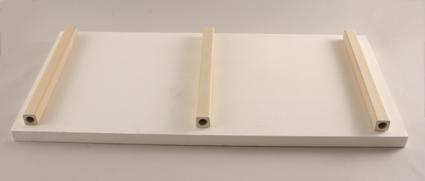

Rigid fiber furniture kit (also called a shelf kit) for the GL-44 series, Pearl-44 series, and equivalent sized kilns.

The light-weight ceramic fiber shelf has been rigidized and planed flat. Note: Leave the shelf in the kiln between firings--excessive handling will degrade the shelf. Since the fiber shelf does not store heat, it can cool faster than the glass. Therefore, crash cooling the kiln can shock the glass.

Coat the new shelf with glass separator. Use firing paper between the glass and the shelf. This will protect the back of the glass from the inevitable surface imperfections in the delicate shelf.

This shelf kit is available only with the purchase of a new kiln, because we do not ship the shelf separately.

1 - 42" long x 20" wide x 1 1/2" thick ceramic fiber shelf

3 - 18" long, 1 1/2" wide square posts

Product Specifications

Warranty Information

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
