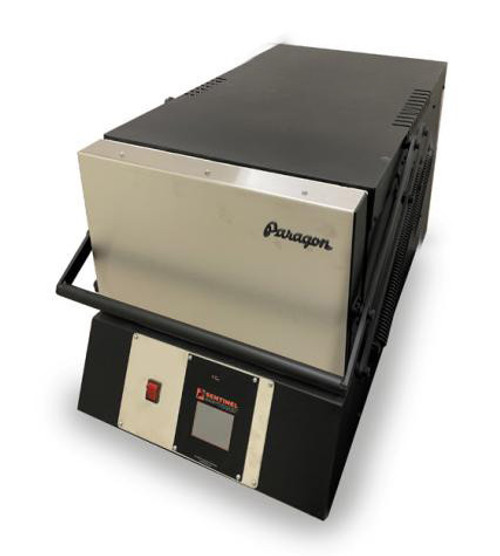

Paragon Double Barrel 9T Pro

Product Overview

Specifications

Max. Temperature	2350F 1287C
Amps	14
Phase	1
Watts	3300
Nema	6-20R
Breaker Size	20
Circuit Copper Wire Size	12 gauge
TUV tested to CSA and UL Standard 499	N
CE	N
Control Type	Sentinel Touch Screen
Voltage	240
Hertz	60
Nema Details

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations. The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Kiln Type	Front Loading Square
Sides	4
Understanding Chamber Measurements
Chamber Volume	0.36 CU.FT. 10.19 litres
Chamber Width	13.25 IN 337 mm
Chamber Depth	9.00 IN 229 mm
Chamber Height	5.25 IN 133 mm
The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom
Outer Size	20.50W x 23.00D x 18.00H Inches 521W x 584D x 457H mm
Ship Size	31.00W x 52.00D x 26.00H Inches 787W x 1321D x 660H mm
Ship Weight	128.00 Lbs. 58.06 Kg.
Doorway Clearance Needed	18.00 Inches 457.20 mm
Ship Method & Notations Important Shipping Information	This Kiln Ships Via Truck


Part Number	S1721 * Base Model

Product Specifications

Warranty Information

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
