Product Overview

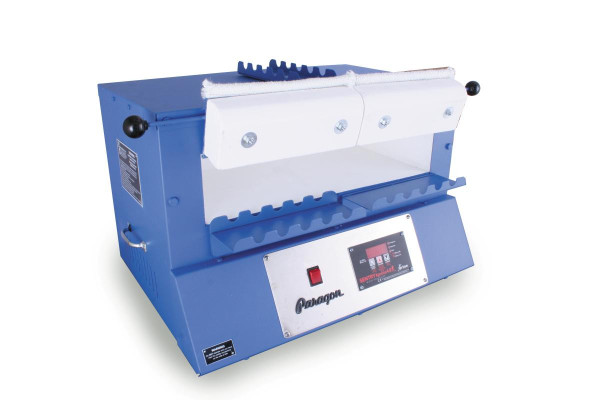

The Paragon BlueBird Glass Bead Annealing Kiln
The Paragon BlueBird Glass Bead Annealing Kiln features new sinusoidal “wavy” elements, which are embedded close to the inner surface of the high-tech, vacuum-formed ceramic fiber top. This is an improvement over our earlier embedded coiled elements because the “wavy” elements are mounted closer to the surface. This enables the elements to radiate heat faster for longer element life. The ceramic fiber top reduces dust inside the kiln.
The BlueBird Glass Bead Annealing Kiln features space-age ceramic fiber walls and a bottom for fast, efficient heating.
Mandrel holders, glass rod warmer
Insert bead mandrels into the kiln. The mandrels rest outside the kiln on a 3”-deep slotted stainless steel mandrel holder, cradled at two points.
We have added exciting new performance-enhancing features to the BlueBird Glass Bead Annealing Kiln, such as the glass rod warmer on top of the kiln. Pre-heating glass rods saves production time.
Door latches and rare-earth magnets
Side latches hold the doors closed while the kiln is heating to an annealing temperature. Phenolic knobs stay cool to the touch. Rare-earth magnets hold the doors open when needed. A safety switch on the front panel turns off power to the controller when the kiln is not in use. Use the switch to reboot the controller when needed.
Sloped panel for easy operation
To save table space, the Sentinel TouchXpress touchscreen controller is mounted under the kiln in an ergonomic, sloped panel for easy operation. The built-in base stays cool even during extended hold times. It is slotted to dissipate heat and comes with mar-proof rubber feet.
The steel base supports the kiln in two layers. The upper steel base supports and strengthens the ceramic fiber floor; the lower steel base covers the entire kiln bottom where it rests on your worktable. Electrical components are mounted to the lower base, away from the heat of the firing chamber.
Economical to fire
The BlueBird Glass Bead Annealing Kiln kiln plugs into a standard household outlet. It draws only 1,500 watts. The kiln ships by convenient UPS/FedEx. Specially designed cartons and vacuum-formed padding ensure that the kiln will arrive safely.
Digital controller
The BlueBird Glass Bead Annealing Kiln’s user-friendly Sentinel TouchXpress touchscreen controller automatically maintains the annealing temperature that you select. The controller is packed with features but is user-friendly.
Features of the BlueBird Glass Bead Annealing Kiln
- Sentinel TouchXpress touchscreen controller
- Double 10” x 2” doors
- Adjustable slotted stainless steel mandrel holder
- Glass rod warmer
- Door latches hold the doors closed; rare-earth magnets hold them open
- 6” deep firing chamber (measured with doors closed)
- Ceramic fiber roof, walls, and floor
- Embedded roof element
- 1”-thick ceramic fiber doors
- Mandrel holders with 20 slots
- 1200°F maximum temperature
- Mar-proof rubber feet
- On-off safety switch
Designed for production
Paragon’s warranty is not affected by the frequency of use. Fire your new kiln every day if you want, even in commercial settings. That will not affect on the warranty period.
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Specifications
Warranty Information
Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.
