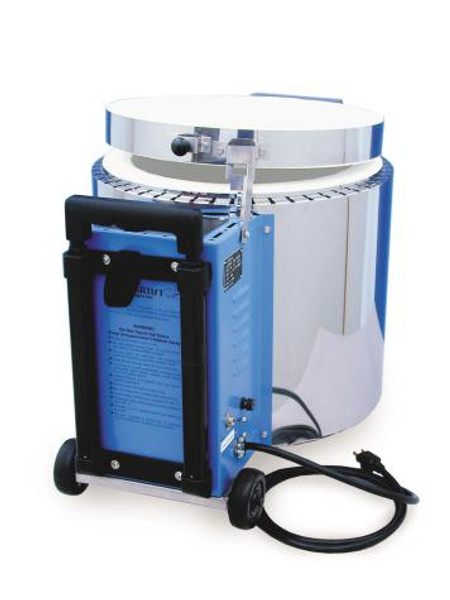

Paragon Home Artist 120v or 240v

Product Overview

Max. Temperature	1900F \| 2000F 1037C \| 1093C
Amps	15 \| 9
Phase	1
Watts	1800 \| 2200
Nema	5-15R \| 6-20R
Breaker Size	20
Circuit Copper Wire Size	12 \| 12 gauge
TUV tested to CSA and UL Standard 499	N
CE	N
IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.
Control Type	Sentry Xpress 4.0 Digital 3-key Cer
Voltage	120 \| 240
Hertz	60
Nema Details

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations. The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Kiln Type	Top Loading Round
Sides
Understanding Chamber Measurements
Chamber Volume	0.78 CU.FT. 22.09 litres
Chamber Width	12.00 IN 305 mm
Chamber Depth	12.00 IN 305 mm
The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom
Outer Size	16.00W x 23.00D x 18.70H Inches 406W x 584D x 475H mm
Ship Size	21.00W x 28.00D x 24.00H Inches 533W x 711D x 610H mm
Ship Weight	47.00 Lbs. 21.32 Kg.
Ship Method & Notations	This Kiln Ships Via UPS/FedEx This kiln is subject to a UPS/FedEx oversize box charge.


Part Number	HM120 * Base Model HM240 - 240v Version

Recommended furniture kit for the Paragon Home Artist and Vitrigraph I kilns.

Included:

2 C-10R Shelves (10” round x 1/2”)

1” wide Square Posts, 3 each of - 1”, 3”, 6” lengths

1 lb. Bag Kiln Wash; 1 Haik Brush

Product Specifications

Warranty Information

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
