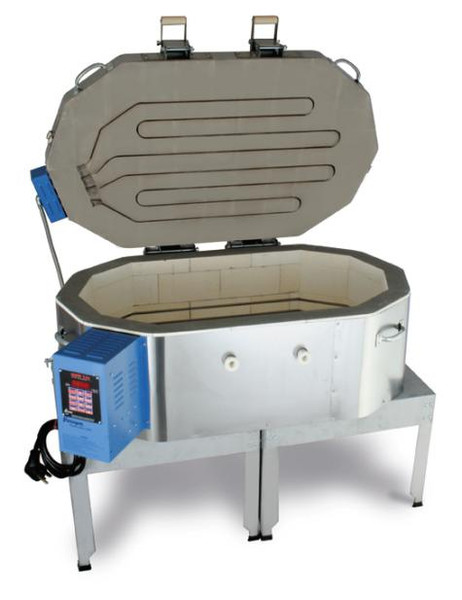

Paragon Ovation 10

(No reviews yet) Write a Review
$3,928.14 - $4,243.73
SKU:
Paragon-Ovation-10
Availability:
Built To Order - 3-5 Weeks
Weight:
452.00 LBS
Shipping:
Calculated at Checkout

Product Overview

Max. Temperature

1700F
926C

Amps

30

Phase

1

Watts

7200

Nema

6-30R

Breaker Size

40

Circuit Copper Wire Size

10 gauge

TUV tested to CSA and UL Standard 499

Y

CE

N

IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.

Control Type


Sentry Digital 12-key Non-Ceramic

Voltage

240

Hertz

60

Nema Details

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.

The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Kiln Type

Top Loading Square

Sides

4

Understanding Chamber Measurements

Chamber Volume

5.70 CU.FT.
161.41 litres

Chamber Length

41.00 IN
1041 mm

Chamber Width

22.50 IN
572 mm

Chamber Depth

11.50 IN
292 mm


The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size

57.00W x 39.00D x 38.50H Inches
1448W x 991D x 978H mm

The external kiln height includes a 18.5" tall stand.

Ship Size

47.00W x 57.00D x 32.00H Inches
1194W x 1448D x 813H mm

Ship Weight

452.00 Lbs.
205.03 Kg.

Doorway Clearance Needed

39.50 Inches
1003.30 mm

Ship Method & Notations

Important Shipping Information

This Kiln Ships Via Truck









Part Number

9361141EGA   * Base Model

Recommended furniture kit for the Paragon Ovation-10, Ovation 1013, and equivalent sized kilns. Included:

2 - 21” x 18” x 5/8” “D” Shelves

12 – 1/2” long, 1” wide Square Posts

1 lb. Bag Glass Separator



Recommended single-shelf Corelite furniture kit for the Paragon Ovation-10, Ovation 1013, and equivalent sized kilns. Included:

1 - 20.5” x 38” x 1” CoreLite Shelf

12 – 1/2” long, 1” wide Square Posts

1 lb. Bag Glass Separator



Product Specifications

Warranty Information

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
