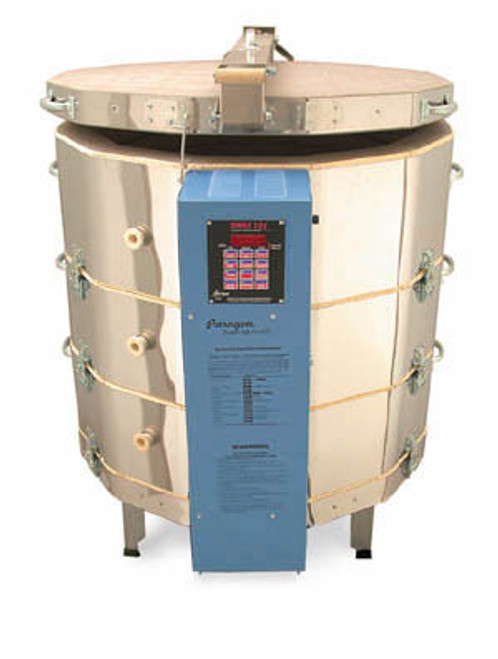

Paragon Janus 27

Product Overview

Max. Temperature	2350F 1287C
Amps	48
Phase	1
Watts	11520
Nema	6-50R
Breaker Size	60
Circuit Copper Wire Size	6 gauge
TUV tested to CSA and UL Standard 499	Y
CE	N
IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.
Control Type	Sentry Digital 12-key Ceramics
Voltage	240
Hertz	60
Nema Details

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations. The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Kiln Type	Top Loading Round
Sides	12
Understanding Chamber Measurements
Chamber Volume	8.11 CU.FT. 229.65 litres
Chamber Width	28.00 IN 711 mm
Chamber Depth	22.25 IN 565 mm
The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom
Outer Size	36.30W x 49.80D x 40.00H Inches 922W x 1265D x 1016H mm The external kiln height includes a 12.25" tall stand.
Ship Size	47.00W x 42.00D x 48.00H Inches 1194W x 1067D x 1219H mm
Ship Weight	500.00 Lbs. 226.80 Kg.
Ship Method & Notations Important Shipping Information	This Kiln Ships Via Truck


Part Number	25611N1G00 * Base Model

Recommended furniture kit for the Paragon Janus-27, TnF-27-3, and equivalent sized kilns.

Included:

6 C-24H Half Shelves (26” round x 3/4” half)

1” wide Square Posts, 6 of each - 1”, 2”, 3”, 4”, 5”, 6” lengths

1 lb. Bag Kiln Wash

Product Specifications

Warranty Information

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
