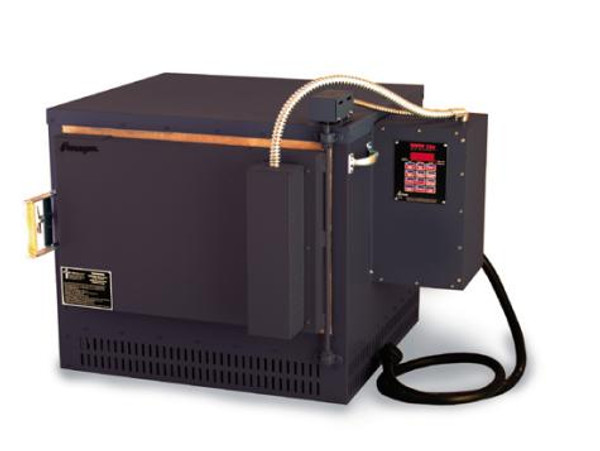

Paragon Janus 24

(No reviews yet) Write a Review
$5,194.31 - $5,696.44
SKU:
Paragon-Janus-24
Availability:
Built To Order - 3-5 Weeks
Weight:
425.00 LBS
Shipping:
Calculated at Checkout

Product Overview

Max. Temperature

2350F
1287C

Amps

45

Phase

1

Watts

10800

Nema

6-50R

Breaker Size

60

Circuit Copper Wire Size

6 gauge

TUV tested to CSA and UL Standard 499

Y

CE

N

IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.

Control Type


Sentry Digital 12-key Ceramics

Voltage

240

Hertz

60

Nema Details

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.

The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Kiln Type

Front Loading Square

Sides

4

Understanding Chamber Measurements

Chamber Volume

4.68 CU.FT.
132.52 litres

Chamber Width

24.00 IN
610 mm

Chamber Depth

22.50 IN
572 mm

Chamber Height

15.00 IN
381 mm


The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size

40.50W x 32.00D x 29.50H Inches
1029W x 813D x 749H mm

Ship Size

47.00W x 43.00D x 42.00H Inches
1194W x 1092D x 1067H mm

Ship Weight

425.00 Lbs.
192.78 Kg.

Ship Method & Notations

Important Shipping Information

This Kiln Ships Via Truck









Part Number

38612N4GGA   * Base Model

Recommended furniture kit for the Paragon Janus-24 and equivalent sized kilns.

Included:

1 - C-22GL Shelf (22” Square x 1”)

2 - C-30H Shelves (22” x 11” x 1”)

1 1/2” wide Square Posts, 4 of each - ½”, 1”, 2”, 3”, 4”, 5” lengths

1 lb. Glass Separator

Product Specifications

Warranty Information

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
