| Max. Temperature | 1700F
926C | | Amps | 48 | | Phase | 1 | | Watts | 11500 | | Nema | 6-50R | | Breaker Size | 50 | | Circuit Copper Wire Size | 6 gauge | | TUV tested to CSA and UL Standard 499 | N | | CE | N | | IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns. | | Control Type |
Sentry Digital 12-key Non-Ceramic
| | Voltage | 240 | | Hertz | 60 | | Nema Details | |
| | Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations. The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations. | | | Kiln Type | Top Loading Square | | Sides | 4 | | Understanding Chamber Measurements |
| | Chamber Volume | 8.36 CU.FT.
236.73 litres | | Chamber Length | 43.00 IN
1092 mm | | Chamber Width | 21.00 IN
533 mm | | Chamber Depth | 16.00 IN
406 mm | | The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom | | Outer Size | 64.00W x 41.00D x 45.00H Inches
1626W x 1041D x 1143H mm | | Ship Size | 68.50W x 46.50D x 52.50H Inches
1740W x 1181D x 1334H mm | | Ship Weight | 854.00 Lbs.
387.37 Kg. | | Doorway Clearance Needed | 41.50 Inches
1054.10 mm | | Ship Method & Notations Important Shipping Information | This Kiln Ships Via Truck | | | | | | | | Part Number | 44611P2GGP * Base Model | |
Recommended furniture kit for the Paragon GL-44 series, Pearl-44 series, and equivalent sized kilns.
Included:
2 C-20 Shelves (20” square x 5/8”)
8 – 1/2” long, 1” wide Square Posts
2 lb. Glass Separator

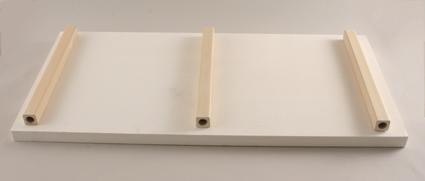

The Rigid Fiber shelf kit is available only with the purchase of a new kiln, because we do not ship the shelf separately.
1 - 42" long x 20" wide x 1 1/2" thick ceramic fiber shelf
3 - 18" long, 1 1/2" wide square posts
Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.
Full Warranty Details
