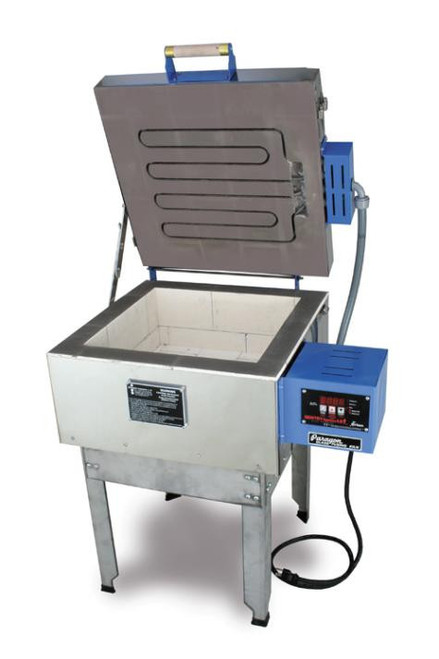

Paragon Kiln- Fusion 7
|
Max. Temperature
|
1700F
926C
|
|
Amps
|
15
|
|
Phase
|
1
|
|
Watts
|
1800
|
|
Nema
|
5-15R
|
|
Breaker Size
|
20
|
|
Circuit Copper Wire Size
|
12 gauge
|
|
TUV tested to CSA and UL Standard 499
|
Y
|
|
CE
|
N
|
|
IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.
|
|
Control Type
|
Sentry Xpress 4.0 Digital 3-Key
|
|
Voltage
|
120
|
|
Hertz
|
60
|
|
Nema Details
|
|
|
|
Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.
The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.
|
|
|
Kiln Type
|
Top Loading Round
|
|
Sides
|
7
|
|
Understanding Chamber Measurements
|
|
|
Chamber Volume
|
0.69 CU.FT.
19.54 litres
|
|
Chamber Width
|
14.50 IN
368 mm
|
|
Chamber Depth
|
6.50 IN
165 mm
|
|
The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom
|
|
Outer Size
|
22.00W x 24.50D x 30.50H Inches
559W x 622D x 775H mm
The external kiln height includes a 18.5" tall stand.
|
|
Ship Size
|
30.00W x 30.00D x 26.00H Inches
762W x 762D x 660H mm
|
|
Ship Weight
|
137.00 Lbs.
62.14 Kg.
|
|
Ship Method & Notations
|
This Kiln Ships Via UPS/FedEx
|
|
|
|
|
|
|
|
Part Number
|
47211J3BGA * Base Model
|
|
Recommended furniture kit for the Paragon Fusion-7, GF-7B, and equivalent sized kilns.
Included:
1 C-13 Shelf (13” round x 1/2”)
4 – 1/2” long, 1” wide Square Posts
1 lb. Bag Glass Separator
Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.
Full Warranty Details
