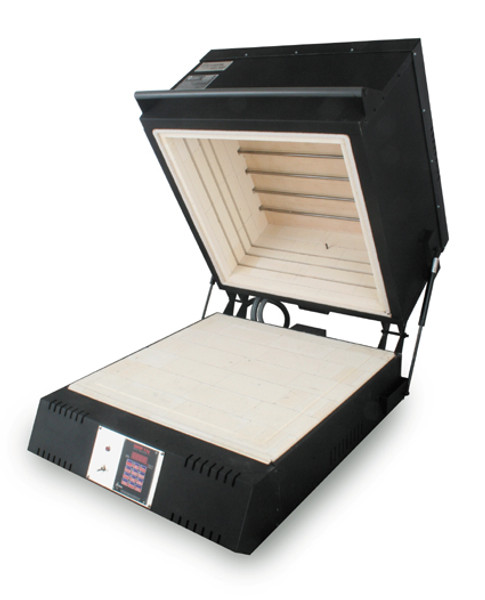

Paragon CS-26

(No reviews yet) Write a Review
$5,132.97 - $5,299.19
SKU:
Paragon-CS-26545
Availability:
Built To Order - 3-5 Weeks
Weight:
523.00 LBS
Shipping:
Calculated at Checkout

Product Overview

Max. Temperature

1700F
926C

Amps

30

Phase

1

Watts

7200

Nema

6-30R

Breaker Size

40

Circuit Copper Wire Size

8 gauge

TUV tested to CSA and UL Standard 499

N

CE

N

Control Type


Sentry Digital 12-key Non-Ceramic

Voltage

240

Hertz

60

Nema Details

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.

The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Kiln Type

Top Loading Square

Sides

4

Understanding Chamber Measurements

Chamber Volume

5.18 CU.FT.
146.68 litres

Chamber Length

26.00 IN
660 mm

Chamber Width

26.00 IN
660 mm

Chamber Depth

13.25 IN
337 mm


The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size

36.25W x 42.00D x 27.75H Inches
921W x 1067D x 705H mm

Ship Size

43.00W x 47.00D x 36.00H Inches
1092W x 1194D x 914H mm

Ship Weight

523.00 Lbs.
237.23 Kg.

Doorway Clearance Needed

36.25 Inches
920.75 mm

Ship Method & Notations

Important Shipping Information

This Kiln Ships Via Truck









Part Number

S1436-5   * Base Model

Recommended furniture kit (also called a shelf kit) for the Paragon CS-26 and equivalent sized kilns.

Included:

1 - C-24GL Shelf (24” square x 1”)

4 – 1/2” long, 1” wide Square Posts

1 lb. Bag Glass Separator

Product Specifications

Warranty Information

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
