Paragon CS-14S

(No reviews yet) Write a Review
MSRP: $2,200.00
$1,980.00
(You save $220.00 )
SKU:
Paragon-CS-14S
Availability:
Built To Order - 3-5 Weeks
Weight:
184.00 LBS
Shipping:
Calculated at Checkout

Product Overview

Paragon CS14S Clam Shell Glass Fusing Kiln

Paragon’s CS14S Clam Shell Glass Fusing Kiln operates on a standard household outlet and fires up to nine 4” x 4” glass tiles. Imagine the murals you could make with this kiln.

Fire small glass bowls, pendants, earrings, cufflinks, and even bracelets. Try out the newest glass techniques. Enjoy adding glittering dichroic glass to your work of art. Make gifts that your loved ones will enjoy for generations. When you own a Paragon CS14S Clam Shell Glass Fusing Kiln, you can experiment with glass fusing to your heart’s content.

The CS14S Clam Shell Glass Fusing Kiln heats from the top for even heat distribution across the glass surface. The lid elements are mounted in pinless element grooves. Element pins are no longer needed because the element coils are wider than the groove opening. This helps eliminate dust in the firing chamber.

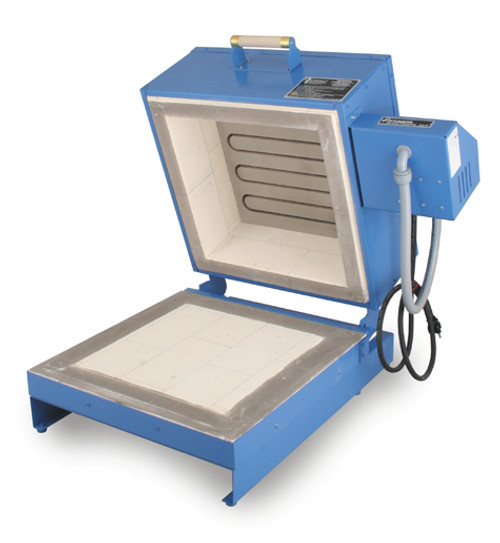

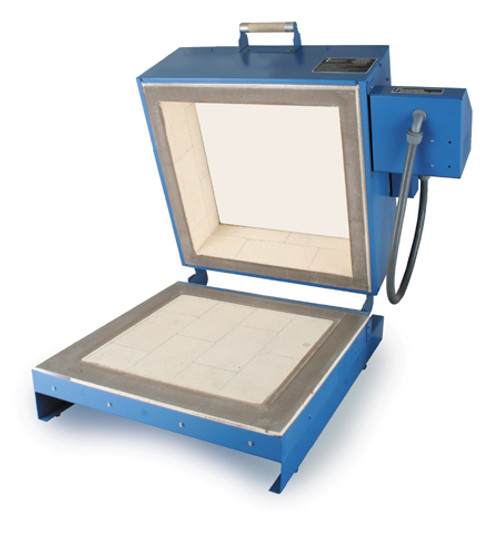

The Lid of the Paragon CS14S Clam Shell Glass Fusing Kiln lifts up for easy access

The walls and top, as a single unit, lift up and out of the way so you can assemble glass pieces inside the kiln. Add stringers and frit to delicate designs, often without using glue. When the kiln shelf is loaded and you are ready to fire, lower the kiln in place.

The kiln is easy to open because of two counter-weight springs mounted under the kiln. The kiln base extends 4” in the back to support the weight of the kiln when in the open position. The base comes with mar-proof rubber feet.

The Paragon CS14S Clam Shell (single opening) top and kiln walls are one unit. If you need the version with a separate lid, please see the CS14D (double opening).

Reliability at the Heart of the Kiln

You will be amazed at the sturdy construction that has made Paragon kilns renowned. The painted steel case covers the sides and top of the kiln. The Paragon CS14S Clam Shell Glass Fusing Kiln has a two-year warranty. A heavy steel base supports the reversible brick bottom completely. These features are extra assurance that your Paragon kiln is built to last. No extra stand is needed.

For your convenience, flip the switch on the front panel to turn off the power to the controller when the kiln is not in use. The large, comfortable wooden handle stays cool.

Thermocouple with “special limit” wire

The thermocouple senses the temperature inside the kiln. It is the small rod that extends into the firing chamber. The ¼” wide Type-K, 14-gauge, exposed-tip thermocouple is made with special-limit wire for superior accuracy. The exposed tip gives the controller a fast response time for even temperatures during holds. The thermocouple is made in America to our exacting standards.

Designed for production

Paragon’s warranty is not affected by the frequency of use. Fire your new Paragon CS14S Clam Shell Glass Fusing Kiln every day if you want, even in commercial settings. That will have no effect on the warranty period.



Max. Temperature

1700F
926C

Amps

15

Phase

1

Watts

1800

Nema

5-15R

Breaker Size

20

Circuit Copper Wire Size

12 gauge

TUV tested to CSA and UL Standard 499

Y

CE

Y

IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.

Control Type


Sentry Xpress 4.0 Digital 3-Key

Voltage

120

Hertz

60

Nema Details

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.

The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Kiln Type

Top Loading Square

Sides

4

Understanding Chamber Measurements

Chamber Volume

0.73 CU.FT.
20.67 litres

Chamber Length

14.00 IN
356 mm

Chamber Width

14.00 IN
356 mm

Chamber Depth

6.50 IN
165 mm


The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size

27.00W x 28.00D x 15.00H Inches
686W x 711D x 381H mm

Ship Size

36.00W x 34.00D x 25.00H Inches
914W x 864D x 635H mm

Ship Weight

184.00 Lbs.
83.46 Kg.

Doorway Clearance Needed

26.50 Inches
673.10 mm

Ship Method & Notations

Important Shipping Information

This Kiln Ships Via Truck









Part Number

4C211J1BGA   * Base Model

Recommended furniture kit for the Paragon CS-14S, and equivalent sized kilns.

Included:

1 - 12” x 13” x 1/2” Square Shelf

4 – 1/2” long, 1” wide Square Posts

1 lb. Bag Glass Separator

Product Specifications

Warranty Information

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
