Paragon F120

(No reviews yet) Write a Review
$2,880.00
SKU:
Paragon-F120-Xpress
Availability:
Built To Order - 3-5 Weeks
Weight:
125.00 LBS
Shipping:
Calculated at Checkout

Product Overview

Paragon F120 Lamp Working Kiln

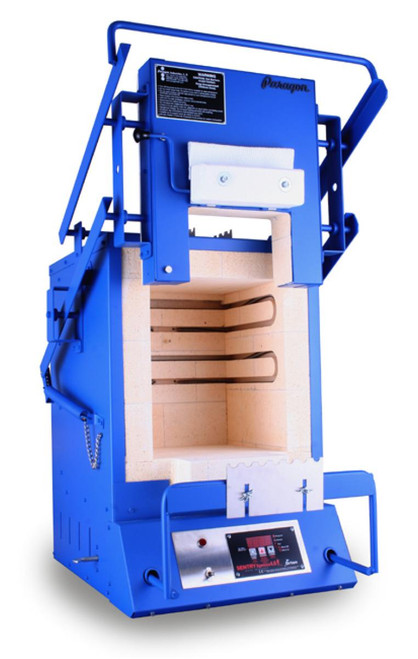

Anneal large glass figurines in the digital Paragon F120 lamp working kiln. Raise the spring-loaded vertical-drop door to insert a glass figurine with a punty rod. Lower the door. The punty rod extends outside the firing chamber through the smaller 2” x 8” punty rod door. This allows the glass to anneal safely.

You can make figurines up to 5” tall in the F120. Maintain the annealing temperature indefinitely with the Sentinel TouchXpress Touchscreen Controller.



Conversion stand included with the F120

The F120 comes with a heavy-duty Conversion Stand. The Conversion Stand adds a mandrel holder (also called a point rest) to your F120. Simply place the kiln on top of the Conversion Stand. Then adjust the mandrel holder vertically and horizontally. The holder slides inside steel tubes. The stainless steel mandrel rest includes 7 slots.

Pinless element grooves

The F120 elements are mounted in pinless grooves in the 3” thick firebrick roof. The element coils are wider than the groove opening, so the elements stay in place without pins. With the element in the top, you can also fuse and slump glass.

Imagine the glass you could sag, slump, and fuse with this kiln. Make small pendants, earrings, cufflinks, and even bracelets. Enjoy the glittering beauty of dichroics.

Solid State Relays

The Paragon F120 kiln has solid-state relays that are mounted to aluminum heat sinks. SSR's last far longer than standard mechanical relays and offer better temperature control during holds. SSR's also have no moving parts to wear out. You will also notice is that SSR's are silent. The only sound you will hear just the reassuring hum of the heating elements.





Max. Temperature

1700F
926C

Amps

14 | 8

Phase

1

Watts

1680

Nema

5-15R | 6-20R

Breaker Size

20 | 15

Circuit Copper Wire Size

12 | 14 gauge

TUV tested to CSA and UL Standard 499

Y

CE

N

IMPORTANT: Some areas such as Canada and Europe require a lid or door safety switch on kilns.

Control Type


Sentry Xpress 4.0 Digital 3-Key

Voltage

120 | 220

Hertz

60 | 50

Nema Details

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.

The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Kiln Type

Front Loading Square

Sides

4

Understanding Chamber Measurements

Chamber Volume

0.48 CU.FT.
13.59 litres

Chamber Width

10.75 IN
273 mm

Chamber Depth

11.00 IN
279 mm

Chamber Height

7.00 IN
178 mm


The Outer Size of the Kiln and the Shipping Size: Width = Left to Right; Depth = Front to Back; Height = Top to Bottom

Outer Size

20.50W x 23.00D x 20.00H Inches
521W x 584D x 508H mm

Ship Size

28.50W x 28.50D x 27.00H Inches
724W x 724D x 686H mm

Ship Weight

125.00 Lbs.
56.70 Kg.

Ship Method & Notations

Important Shipping Information

This Kiln Ships Via Truck









Part Number

04211J3BGA   * Base Model

04522J3DGA = 220v



Solid State Relays - NEW! Standard on all F120 Models!
Door Cut Off Switch - NEW! Standard on all F120 Models!



Recommended furniture kit for the Paragon F-120, F-130, and equivalent sized kilns.

Included:

1 – C-10S Shelf (10” square x 1/2”)

4 – 1/2” long, 1” wide Square Posts

1 lb. Bag Glass Separator

Product Specifications

Warranty Information

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
