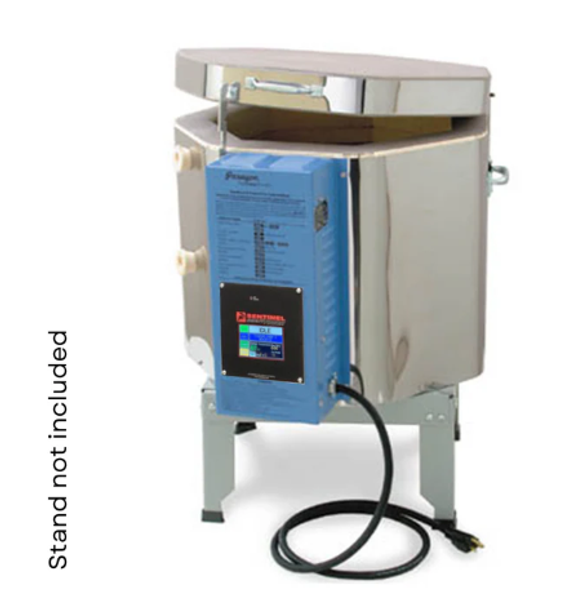

Paragon Kiln - CT81713 Janus

Paragon Kiln- CT81713 Janus- 8 sided kiln

The Paragon CT81713 Janus can fire both pottery and glass. Heating elements are mounted in the top and sidewalls.

Select between glass and pottery with the flip of a switch. With the switch in glass mode, heat comes from the top elements and the middle sidewall element. With the switch in pottery mode, heat comes from only the sidewall elements.

In the glass mode, fuse and sag large glass projects placed on a single shelf. In the pottery mode, fire to cone 10. You can also fire several shelves of smaller glass pieces using the pottery mode.

The elements in the lid are mounted in a firebrick “ball” groove that eliminates element pins. The element coils are wider than the groove opening, so the elements stay in place without pins. The groove dissipates heat efficiently, evenly radiating heat onto the glass.

The thermocouple, which senses temperature inside the kiln, is protected with a high-nickel stainless steel sheath for long life.

The CT81713 Janus control box is finished in a durable high temperature, water-base blue paint. We chose water-base paint because of the low emissions during spraying. This creates a safer working environment for our employees and cuts down on pollution.

Wires are fastened to the elements with heat-dissipating connectors refined and proven over many years in Paragon kilns. Elements are coiled from the finest high-temperature wire available.

A large, tapered peephole offers a wide view of the firing chamber with little heat loss. The peephole, both sides of the lid and top rim of sidewall firebrick are hardened and sealed with a special refractory coating to protect the ware from dust.

Features of the Sentinel Touch Screen Controller

This controller will make firing kilns just a little bit easier in these ways:
*touch-screen technology for the user interface
*easy-to-follow screen descriptions
*different user-interface levels, which can be set to match the user’s firing knowledge
*graphical display of the firing process right at the controller
*Store up to 30 custom user programs
*Up to 32 segments per program
*Ability to make adjustment during a firing such as add segments, add temperature, and skip segments
*Built in diagnostics testing for use with a current sensor
*Alarm
*Error Codes
*WiFi enabled for easy software updating
*Register your Genesis on our web site or mobile app for remote monitoring of your kiln
*Use for single zone kilns only

The Kiln Stand

In the "Available Options," please choose the Standard Kiln Stand (6" tall with mar-proof plastic feet), or the 12" Deluxe Rolling Kiln Stand (Recommended if you are adding a VentMaster Kiln Vent).

Other features

• Glass/pottery selection switch
• 3” insulating refractory firebrick walls
• Sidewall elements in dropped, recessed brick grooves are easy to replace.
• Tapered peepholes for a wide view
• A steel floor pan supports the entire brick bottom of each kiln.
• One year limited warranty
• Available in 240, 200, 208, or 380 volt, 50 or 60 hertz, single or 3 phase.
• Janus-24 and Janus-27: easy-access control box with folding support arm.
• Since the Janus-1613 is designed for porcelain, it also easily fires ceramics, china paint, decals, gold and, of course, glass.

The Furniture Kit

The furniture kit consists of carefully selected fireclay shelves and posts for this particular model. When estimating the price of the kiln, include the cost of furniture. The furniture allows you to stack multiple layers of ware. Without it, you could fire only the ware that would fit on the kiln bottom.

The Furniture Kit:

• 2 - C-18 (15” Round x 5/8”) Shelves, 1- C-18 1/2 Shelf
• 1" Square Posts, 3 each - ”, 1”, 2”, 3”, 4”, 6”
• 1 lb. Bag Kiln Wash
• Furniture Kit Shipping Weight: 28 lbs.

Designed for production

Paragon’s warranty is not affected by frequency of use. Fire your new kiln every day if you want, even in commercial settings. That will have no effect on the warranty period.

Optional Orton KilnMaster 120 Kiln Vent

The patented Orton Vent Master not only vents fumes but also improves firing results. Click Here to learn more!

Optional colors at no extra charge

Brighten your studio with color! Order your kiln in one of our standard colors at no extra charge . . . berry, black, blue, hot pink, jade, navy, purple, or turquoise.

Specifications

Disclaimer: The specifications above assume that the kiln will be plugged into a dedicated circuit. Local electric codes supersede our recommendations.

The pricing and electrical specifications for the above products reflect their design for use in the United States. The International versions of most models will have variations in electrical specifications and price due to consumer safety requirements or electrical regulations.

Paragon kilns are warranted to the original purchaser by Paragon Industries, L.P. (herein Paragon), subject to the listed exclusions below, to be free of defects in workmanship for the periods specified below. The warranty period begins from the date of shipment from the Paragon factory unless the date of the original purchase from an authorized Paragon distributor or dealer can be established.

Full Warranty Details
