Hot Shot - Controllers




FEATURES TAP II Bartlett Genesis Spark NOVUS N1030T
Keypad Touchscreen Touchscreen 3 key momentary switch with overlay
No. of Thermocouples or Zones 1 to 3 1 to 3 1
Thermocouple Type K, S, or R K, S or R J, K, T, PT100
Method of Control PID PID on/off
Vary-Fire (Ramp/Hold) Virtually unlimited programs Store up to 30 custom user programs Stores up to 25 programs (last fired program remains in memory)
Segments per program (each segment has a ramp rate to a temperature, and a soak period) Virtually unlimited segments Up to 32 segments per program Up to 20 segments per program
Skip-Step (move from one
segment to the next ramp)
Yes Yes Yes
Add Time (to current hold period) Yes Yes Yes
Preset Cone Fire Programs Yes 3 Speeds (Slow, Medium, Fast) 3 Speeds (Slow, Medium, Fast)
Cone Fire to Ramp Hold Yes Yes Yes
Temperature Scale °F or °C °F or °C °F or °C
Multi Zone Control Yes Yes No
Delay Start Yes Yes Yes
Alarm Yes Yes No
Error Codes Yes Yes Limited
(power fail, t/c FAIL, t/c leads reversed)
Cost of Firing Calculation Yes Yes No
Diagnostics Yes No No
Wi-Fi Ready Yes Yes No
Wi-Fi enabled for easy software
updating
Yes Yes No
Data Graphing Yes Yes No
Monitor Firing with Phone App Yes Yes No

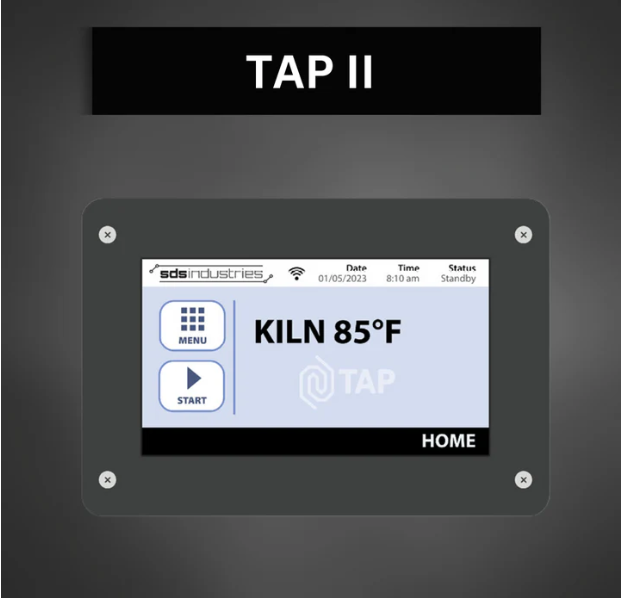

TAP II

The TAP II offers unlimited program storage and can be easily programmed either directly on the screen or via the free mobile app. The TAP mobile app enables users to create and monitor programs in real time, set notifications, view detailed firing logs with minute-by-minute data, and receive push notifications about operation schedules. Additionally, the TAP controller provides access to maintenance schedules and allows you to adjust ongoing programs as needed.

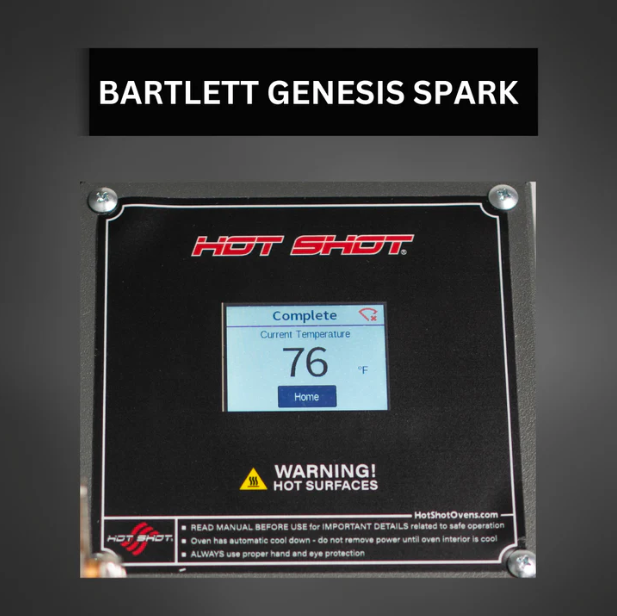

Bartlett Genesis Spark

The Genesis Spark is an advanced upgrade for Hot Shot Ovens, featuring industry-specific presets, 30 customizable programs, and Wi-Fi capabilities for seamless software updates, built-in diagnostics, and automatic PID adjustments. It integrates with the Bartlett Kiln Aid app, allowing you to monitor your kiln remotely and receive real-time alerts about its firing process.

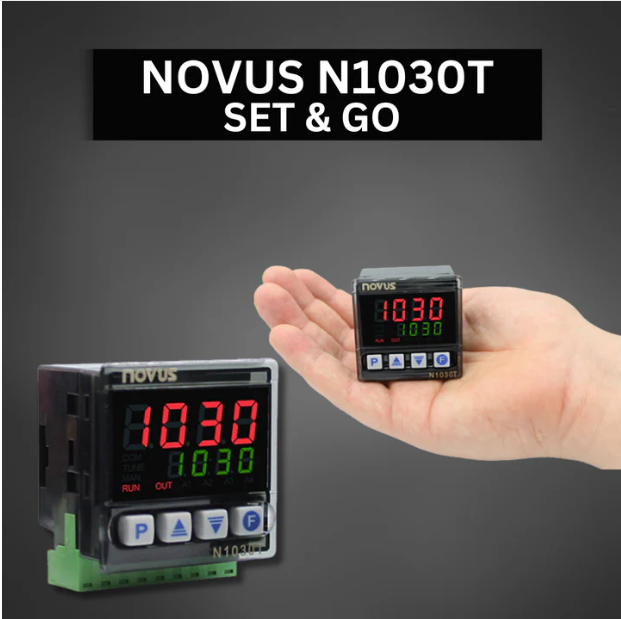

Novus N1030T Set and Go

N1030T SET & GO features a high-performance PID algorithm that ensures accurate and stable temperature control. With its straightforward "SET & GO" functionality, you simply set your desired temperature, and the controller manages the heating process to reach and maintain that temperature as needed. Additionally, it includes a timer function for added flexibility in your temperature control tasks. The N1030T SET & GO is designed to deliver dependable performance while remaining budget-friendly, making it an excellent choice for various applications.
